Thirty years after the movie thriller 'The Spy Who Loved Me' hit the silver screen Rinspeed sQuba is the first car that can actually 'fly' under water.
Zumikon - "Dive it again, James!" If the situation gets too hot for the secret agent he'll go underground - or under water. So demonstrated impressively by Roger Moore in 'The Spy Who Loved Me" in 1977 when he dove below the waves in a sleek vehicle that moments before seemed to be an ordinary car. The only problem: The scene never really took place; it was an animation.
And it is this submerged stabile flight at a depth of 10 meters that sets the Rinspeed sQuba apart from military vehicles. While the latter can go under water, they are limited to driving slowly over the submerged ground. Rinderknecht: "It is undoubtedly not an easy task to make a car watertight and pressure resistant enough to be maneuverable under water. The real challenge however was to create a submersible car that moves like a fish in water."
It also had to be a sports car that was converted into a diving dream in the facilities of Swiss engineering specialist Esoro. In a first step the combustion engine was removed and replaced by several electric motors. Three motors are located in the rear. One provides propulsion on land, the other two drive the screws for underwater motoring. They are supported by two powerful Seabob jet drives in the front, which 'breathe' through special rotating louvers from HS Genion (for opening and closing the water intake). The rotating outlet jets were designed to be extremely light yet twist resistant by using high-tech nano materials, so-called Carbon Nano Tubes.
It is a sure bet that the Rinspeed sQuba will steal the show from any 'Baywatch' beauty on the beach. And easily, too: You drive the car into the water and the car floats. That is, until you crack the door to let the water in. Immediately the Rinspeed sQuba starts on his way to the underwater world. The occupants' breathing air comes from an integrated tank of compressed air that divers know from scuba diving. Rinderknecht: "For safety reasons we have built the vehicle as an open car so that the occupants can get out quickly in an emergency. With an enclosed cabin opening the door might be impossible." But safety wasn't the only reason for choosing an open-top design: With an enclosed volume of just two cubic meters of air the vehicle weight would have to increase by two tons (!) to counteract the unwanted buoyancy, giving the Rinspeed sQuba the land mobility of a turtle. Without occupants the Rinspeed sQuba surfaces automatically.
It is even capable of autonomous driving on land thanks to a sophisticated laser sensor system from the Hamburg company Ibeo - without any help from the driver or passenger.
Power is supplied by rechargeable Lithium-Ion batteries. Rinderknecht: "The 'sQuba' is a zero-emission car as documented by the rotating license plate in the rear. It produces no exhaust emissions. The Swiss are among the world's pioneers in the area of hydropower. The 'sQuba's' filling station is the water reservoir." It is no surprise that the vehicle features powerful yet energy-saving LED lighting technology.
3-D foil elements with embossed fish and sharkskin patterns from Wetzel Processing Group and Hornschuch add visual pizzazz and streamline the exterior. Together with styling elements from Foliatec they create a harmonious velvety matt-white appearance.
For shore leave the Rinspeed sQuba relies on a stainless coil-over suspension from KW automotive and large Pirelli tires mounted on custom-made forged light-weight wheels from AEZ with 17- and 18-inch diameters. But the Rinspeed sQuba is really at home in the water. To make the occupants feel at home there as well the innovative salt-water resistant interior from Strähle + Hess features genuine mother-of-pearl trim and diamond-plated non-slip inlays from KGS Diamond, normally used in high-tech abrasives. After all, 'diamonds are a girl's best friends.' The high-tech VDO instrument cluster and controls create a futuristic ambiance and allow controlling all vehicle functions even while submerged.
Added to the 33 kg (72.6 lbs) of weight reduction from the chassis and exterior, are 34 kg (74.8 lbs) from the interior, as well as over 33 kg (72.6 lbs) removed from the engine and drive train.
The V12 is eager to deliver its performance - it brings its menacing power with immediacy and precision to guarantee breathtaking performance - after only 3.2 seconds the SuperVeloce has already reached 100 km/h (62 mph).
The control electronics for the V12 were developed internally by Lamborghini - each cylinder bank has its own high-performance processor. If the engine needs more cooling air, intake funnels emerge from the rear pillars: when not in operation, they lie flush with the bodyshell. Dry sump lubrication enables the V12 to be mounted extremely low down, benefiting the handling dynamics: this also guarantees oil supply under extremely dynamic driving conditions. With 12 liters of lubricating oil in circulation, the oil cooler is located on the left side of the vehicle and cooled by air flowing through the aperture in the sill.
But absolutely no corners have been cut when it comes to one characteristic that is a feature of all Lamborghini super sports cars - the exceptionally high quality of the workmanship. The craftsmen in Sant'Agata Bolognese are all masters of their respective trades; the three-year warranty bears testimony to absolute faith in product quality.
* Frame: High strength tubular steel structure with carbon fiber components
* Bodywork: In carbon fiber, except roof and door external panels (steel)
* Steering
o Type: Mechanical (rack and pinion) power-assisted
o Right-hand turning circle: 12.55 m (41.17 ft)
* Wheels and tires
o Front: 245/35 ZR 18"
o Rear: 335/30 ZR 18"
* Engine
o Type: 12 cylinders at 60°
o Bore and stroke: 88mm x 89 mm (3.46 in x 3.50 in)
o Displacement: 6496 cc. (396.41 in³)
o Compression ratio: (11 ± 0.2):1
o Maximum power: 670 hp (493 kW) at 8000 rpm
o Maximum torque: 660 Nm (487 lb-ft)at 6500 rpm
o Engine position in vehicle: Longitudinal central-rear
o Cylinder heads and engine block: Aluminum
o Intake system: Variable geometry with 3 operating modes
* Timing
o 4 valves per cylinder, 4 overhead camshafts
o Timing gear transmission: 2 chains
o Continuous timing variator (int. and ex.): Electronically controlled
* Ignition system
o Static type ignition system with individual coils (one for each spark plug).
o Firing sequence: 1-7-4-10-2-8-6-12-3-9-5-11
* Fuel system/injection
o Lamborghini LIE electronic engine control unit, multipoint, sequential timed, DRIVE BY WIRE
o Lubrication system
o Type: Dry sump
o Recovery pumps: 2 gear pumps
o Delivery pump (high pressure): 1 gear pump
* Cooling system
o Type: Liquid cooled, with pressurized circuit
* Transmission
o Type of transmission: Permanent all-wheel drive with Viscous Traction system
o Gearbox: 6-speed e-gear
o Clutch: Dry single disc
o Clutch disc diameter: 272 mm (10.7 in)
* Transmission ratios
o Traction Control System: T.C.S.
o Gearbox - E-Gear & Manual
o 1st: 1:3.091
o 2nd: 1:2.105
o 3rd: 1:1.565
o 4th: 1:1.241
o 5th: 1:1.065
o 6th: 1:0.939
o Reverse: 1:2.692
* Brakes
o 4 self-ventilated rotors with pedal control, hydraulic transmission with dual independent circuits, one for each axle with vacuum servo.
o ABS antilock device + DRP function
o Carbo ceramic brakes (CCB)
o Handbrake: Mechanical, acting on rear wheels
o Front rotor: Ø 380 x 38 mm (Ø 14.96 in x 1.5 in)
o Front caliper cylinders: n.6 (32-36-38 mm) (1.26 in -1.42 in-1.5 in)
o Rear rotor: Ø 380 x 38 mm (Ø 14.96 in x 1.5 in)
o Rear caliper cylinders: n.6 (32-36-38 mm) (1.26 in -1.42 in-1.5 in)
* Suspension
o 4-wheel independent articulated quadrilateral system. Hydraulic shock absorbers and coaxial coil springs. Suspension with dual front and rear struts, anti-roll, anti-dive and anti-squat bar.
* Dimensions
o Wheelbase: 2665 mm (104.92 in)
o Total length: 4705 mm (185.23 in)
o Total width: 2058 mm (81.02 in)
o Total height: 1135 mm (44.69 in)
o Dry weight: 1565 Kg (3450.2 lb)
o Front track width: 1635 mm (64.37 in)
o Rear track width: 1695 mm (66.73 in)
o Front overhang: 1090 mm (42.91 in)
o Rear overhang: 950 mm (37.40 in)
o Maximum overall width with external rear-view mirrors: 2240mm (88.19 in)
o Weight distribution front/rear: 42% - 58%
* Liquid capacities
o Fuel tank: 100 Liters (26.4 gal)
o Engine oil: 12 Liters (3.17 gal)
o Gearbox oil: 3,5 Liters (0.92 gal)
o Front differential oil: 1 Liter (0.26 gal)
o Rear differential oil: 2,5 Liters (0.66 gal)
o Cooling circuit: 15 Liters (3.96 gal)
* Performance
o Top speed with small spoiler: 342 km/h (212.5 mph)
o Top speed with big wing: 337 km/h (209,4 mph)
o Acceleration 0-100km/h: 3.2 s
* Fuel Consumption (according with DIR 1999/100/CE)
o City: 32 L/100km
o Highway: 13.7 L/100
o Combined: 20.6 L/100
o CO2 Emission: 480 g/km
* Fuel Consumption USA (according with US EPA guidelines)
o Manual
+ City cycle: 8 mpg
+ Highway cycle: 13 mpg
+ Combined: 10 mpg
o E-Gear
+ City cycle: 9 mpg
+ Highway cycle: 14 mpg
+ Combined: 11 mpg
With the Cadillac Converj Concept General Motors unveiled a further glimpse at the potential of electric propulsion, this time in the form of luxury transportation. The Cadillac Converj was developed as a well-appointed grand touring coupe with a bold design and a host of interactive technology.
The four-passenger Cadillac Converj concept is intended to show how GM's revolutionary electric propulsion technology - called Voltec - can power a luxury coupe with a typically Cadillac "no compromises" design. The technology enables up to 40 miles of gas- and emissions-free electric driving with extended-range capability of hundreds of miles.
Voltec - innovative propulsion technology The Cadillac Converj's Voltec electric propulsion system is made up of a 16-kWh, T-shaped battery, an electric drive unit, and a four-cylinder engine-generator. It uses electricity as its primary source to drive the car.
A thermally managed battery pack contains more than 220 lithium-ion cells that provide the primary power to drive the Cadillac Converj electrically up to 40 miles without using fuel or producing tailpipe emissions. The battery is integrated into the Cadillac Converj's chassis and stores electricity from the grid when the vehicle is plugged in. It takes less than three hours to recharge the battery at 240V, or about eight hours from a 120V outlet.
When the battery's energy is low, the Cadillac Converj seamlessly switches to extended-range mode. During this secondary level of operation, electricity needed to power the vehicle is created on-board by a flex-fuel-powered engine that operates much like a home generator to create electricity. The engine-generator ensures a constant supply of power for hundreds of miles until the car is refueled or plugged in to recharge the battery. This extended-range mode eliminates the range anxiety that comes with driving pure electric vehicles that offer no backup power when the battery charge is low.
Whether in electric or extended-range mode, the Cadillac Converj is propelled all the time by an electric drive unit. It converts electrical energy from the battery or the engine-generator into mechanical energy to drive the front wheels. It also delivers 273 lb.-ft. (370 Nm) of instant torque, for a quick launch, and 120 kW of power. The top speed is 100 mph.
There is no compromise in vehicle performance in either mode of operation. To enhance the ride feel, the Cadillac Converj Concept also features GM's Magnetic Ride Control; and for even greater efficiency, energy during braking is captured and stored in the battery.
Pure Cadillac design There's no mistaking the Converj for anything but a Cadillac, according to Lutz. "An aggressive, forward-leaning profile hints at a new, progressive theme and proportion in Cadillac's design evolution," he says. "The new proportion showcases a uniquely shaped, modern vision of a personal luxury 2+2."
The overall shape is reinforced by a prominent, sweeping body line with large, 21-inch (front) and 22-inch (rear) wheels pushed to the edges of the body. The Cadillac Converj exterior is painted a dark silver tri-coat that GM designers dubbed "Reaction."
An all-glass roof incorporates solar panels that help offset power drain from the vehicle's accessories. Additionally, several aerodynamic and design efficiencies were incorporated to enhance the driving range:
* A full under-vehicle cover (belly pan)
* Minimal grille openings that reduce drag at the front of the vehicle
* Low-profile rearview cameras replace conventional outside mirrors to reduce drag
* Wheels are shaped to push air outward for smoother body side airflow
The Cadillac Converj also incorporates vertical headlamp and taillamp elements, with light pipe technology.
Luxury meets technology inside The Cadillac Converj's interior has advanced features and luxurious appointments blending efficiency and environmental consciousness. The 2+2 configuration is trimmed in contrasting Winter White synthetic suede - including the top of the instrument panel - and Midnight Black leather, with polished aluminum and wood grain accents. Renewable materials are used throughout such as wool-blend carpeting, a headliner made from silk, suede made from post-industrial content and more.
A technologically advanced driver center increases efficiency and reduces the draw on the battery. Features include:
* New, organic light-emitting diode technology used on reconfigurable instrument cluster
* Touch-screen navigation, climate, center-stack controls and audio systems
* Adjustable, overhead white ambient lighting
* Unique "power on" sequence featuring blue-lit console graphics
* Screen displays for features including regenerative braking, battery charge level and power output
* No inside rearview or outside mirrors; cameras provide surrounding images on a screen placed high on the instrument panel for a full, panoramic view
* Push-button ignition and power-folding front seats

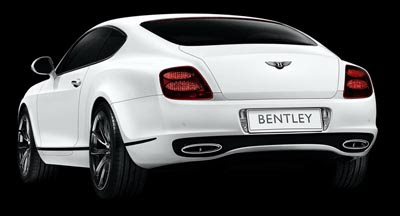

The Bentley Continental Supersports is the fastest and most powerful Bentley ever. It is the extreme Bentley, a muscular two-seater that delivers supercar performance and a highly focused driving experience. The Bentley Continental Supersports is also the first Bentley capable of running on both petrol (gasoline) and biofuel, pioneering the use of FlexFuel technology in the luxury sector. This represents stage one of the company's commitment to make its complete model range compatible with renewable fuels by 2012. Available worldwide from autumn 2009, the Bentley Continental Supersports will be FlexFuel compatible in the majority of markets from launch with North American cars offering the capability by summer 2010, following regulatory approval.
The Bentley Continental Supersports began as an 'under the radar' project exploring the possibilities of weight reduction on the Bentley Continental GT but with more power and torque. A largely experimental process crystallised over a period of 24 months into an official new car programme, driven by the passion and enthusiasm of a small group of Bentley engineers and designers. The results are dramatic. With 630PS (621 bhp) and new 'Quickshift' transmission that halves shift times, the Bentley Continental Supersports sets new performance benchmarks for Bentley. It accelerates from 0-60 mph in 3.7 seconds (0-100 km/h in 3.9 seconds) with a top speed of 204 mph (329 km/h).
Supercar performance is complemented by an array of chassis enhancements including retuned steering and suspension, utilising lighter weight components, retuned dampers and anti-roll bars. Agility is further sharpened by the 40:60 rear-biased torque split for the all-wheel drive system, a wider rear track, bespoke lightweight 20-inch alloy wheels and a unique electronic stability programme. Carbon ceramic brakes are standard fitment, benefiting steering response, grip and ride comfort, while saving weight. Overall, the engineering team have achieved a weight reduction of 110 kg (243 lb) compared with the Bentley Continental GT Speed.
The evolution of the Bentley Continental Supersports' design is very much a case of 'form following function' with new purposeful sculptural forms signalling the engineering changes beneath the skin. For example, the increased power and torque of the W12 engine necessitated additional airflow to the twin turbocharger intercoolers and cooling system. Bentley's designers responded with a purposeful and dramatic style that features large vertical intake apertures and twin bonnet vents. Similarly, new flared rear wings that accommodate the 50 mm (2 inches) wider rear track are designed to emphasise the powerful stance of this ultra-high performance coupe. The resultant Supersports style combines the looks of the iconic Continental GT with a new and distinctive appearance that reflects its more extreme character.
The Bentley Continental Supersports is further distinguished from its Continental coupe stable mates by a unique dark-smoked steel finish to all exterior 'brightware', including front grilles, lamp bezels, window surrounds and wheels. A complex 'Physical Vapour Deposition' process is applied to all stainless steel components to give a lustrous and highly durable finish. A car industry first, this process is normally used as a coating on industrial tools, watches and even hip replacement joints.
Fully embracing the extreme spirit of the Supersports, Bentley's interior designers have created a unique ambience. The cockpit represents a dramatic reinterpretation of Bentley interior design in which carbon fibre and Alcantara not only convey a sporting and contemporary style but also reduce weight. The Bentley Continental Supersports is a strict two-seater featuring all-new lightweight sports seats with carbon fibre clamshell rear panels. In the rear compartment, the seats are replaced by a stowage deck with a carbon fibre luggage retaining beam. The new interior also provides a showcase for the skills of Bentley's craftsmen and women at the company's factory in Crewe, England. Signature premium grade leather and brightware are complemented by carbon fibre panels, replacing traditional wood veneers.
The Bentley Continental Supersports is capable of running on either petrol and E85 biofuel or any combination of the two. E85 biofuel can offer a reduction of up to 70 per cent in CO2 emissions on a 'well-to-wheel' basis. Well-to-wheel is a measurement of a fuel's net CO2 contribution to the atmosphere, not just tailpipe emissions. It is a way of quantifying how much CO2 a fuel emits from its growth or extraction (well) to its combustion or deployment (wheel). It includes refinement, distillation and transport of the fuel. The fuel supply system detects the blending ratio of the fuel in the tank and ensures that power and torque remain constant regardless of the ratio of petrol to biofuel. The result is seamless power delivery in the Bentley tradition.
The 'Supersports' name is inspired by the original two-seater 3-litre Supersports model introduced in 1925, itself an evolution of the 3-litre Speed. The lightweight, 85 bhp Supersports was the first production Bentley to reach 100 mph and was also renowned for the application of Le Mans-winning race technology.
Few sports cars are developed specifically for Britain's roads. Those that have been tend to become true 'driver's cars'. Alfa Romeo is planning for the new, limited edition Alfa Romeo Brera S to join those ranks.
Distinctly different from the rest of the line-up, this unique addition to Alfa Romeo's UK range includes refined styling changes, inside and out. And to ensure ultimate exclusivity, production of the Alfa Romeo Brera S will be limited to just 500 individually numbered models.
Power comes from a choice of two existing direct injection petrol engines - the 185 bhp 2.2 JTS and the 260 bhp 3.2 V6 JTS.
Marketing director at Alfa Romeo UK, Nicholas Bernard, says: "Significantly, the Alfa Romeo Brera S isn't simply about brute force, it's about how the available power is transferred to the road and how the road surface is communicated back to the driver to bring new levels of sports handling and driver-focused confidence and involvement."
Briefed to make the Alfa Romeo Brera S less of a long-distance tourer and more sporty on UK roads, the engineering team at Prodrive developed a unique suspension set-up. Prodrive engineers meticulously experimented with spring rates and ride heights to match the reduced weights of the 2008 model year Alfa Breras. Then followed an extensive damper tuning exercise to achieve the desired ride/handling balance and steering response required by driving enthusiasts in the UK.
According to Prodrive Project Leader, Peter Cambridge, the result is "a car that 'shrinks' around the driver and delivers all the fun and engagement of a sports car driving experience on A and B-roads. Yet, on motorways, offers a compliant and composed ride."
The sports car driving experience is achieved by reducing roll and pitch, flattening the cornering attitude, and subsequently instilling confidence-inspiring steering.
To reduce roll and pitch and achieve an even flatter cornering attitude, Prodrive commissioned bespoke Eibach coil springs and Bilstein dampers.
Spring rates are increased by over 50 per cent compared to the standard Alfa Brera, giving the car a more nimble and agile feel, while the specially tuned gas-filled mono-tube dampers give tighter body control. A careful balance has been created to maintain good compliance over ridges and bumps in the road.
At the same time, the suspension static geometry has also been revised to optimise steering and handling. These changes, together with new 19" alloy wheels and Pirelli PZero Nero tyres, have created a more responsive turn-in to corners, with increased driver feedback, allowing the driver to explore the dynamic limits of the car.
To further enhance suspension geometry, the cars have been lowered by 10 mm front and rear. This lower centre of gravity helps reduce roll and improve cornering and braking performance. In addition, the lowered suspension gives the Alfa Romeo Brera S a more purposeful stance.
At each corner of the Alfa Romeo Brera S, unique Alfa Romeo 8C Competizione-inspired, lightweight 19" alloy wheels have been fitted. Although the wheels are eye-catching, the all-new design was commissioned by Prodrive primarily for performance, rather than just cosmetic appeal. The reason is unsprung weight - the weight carried by the car on the 'road side' of the spring and shock absorber. This plays a significant role in the way the car steers, handles and transmits feedback to the driver.
The lighter the wheel, the better it tracks undulations in the road surface without requiring heavy damping to control it. The unsprung weight has been further reduced by the adoption of hollow anti-roll bars and aluminium suspension components from the Factory.
As a result, the weight of both Alfa Romeo Brera S models is lower than the rest of the range. The front-wheel drive 3.2 V6 JTS is almost 100 kg lighter than the Q4 version and the 2.2 JTS version weighs 35 kg less.
The Alfa Romeo Brera S also sounds different from the standard range. The original characteristic growl of the V6 has been enhanced by careful redesign of the rear silencers. Thanks to a Holmholtz resonator connected in tandem with each silencer, the 2.2 JTS model now emits a sportier yet refined burble.
The exhaust has been altered to mirror the shape of the rear lights. Finished with chrome embellishers, they feature a Prodrive logo on the tailpipe exterior. This is just one of several subtle exterior enhancements to the award-winning Alfa Romeo Brera, including Prodrive branded front stone deflectors, and a bespoke red 'S' or 'SV6' on the C-pillar.
Inside the 3.2 V6 JTS Alfa Romeo Brera S, changes are more obvious. Not only are the supportive sports seats upholstered in soft black Frau® leather with red stitching, so are the dashboard fascia, door panels, steering wheel and gearlever. The centre console and instruments are faced in a dark finish. This interior can also be specified on the 2.2 JTS version.
Foot pedals are fashioned from drilled aluminium and the headrest recess houses a limited edition Brera S aluminium plate, featuring the flags of Italy and Britain.
For the record, the 2.2 JTS and 3.2 V6 JTS Alfa Romeo Brera S can reach 62 mph from rest in 8.6 and 7.0 seconds respectively, on the way to maximum speeds of 139 and 155 mph.
The transition from Alfa Brera to Brera S takes place at Alfa Romeo UK's dedicated import centre, near Bristol, and is overseen by Prodrive.
